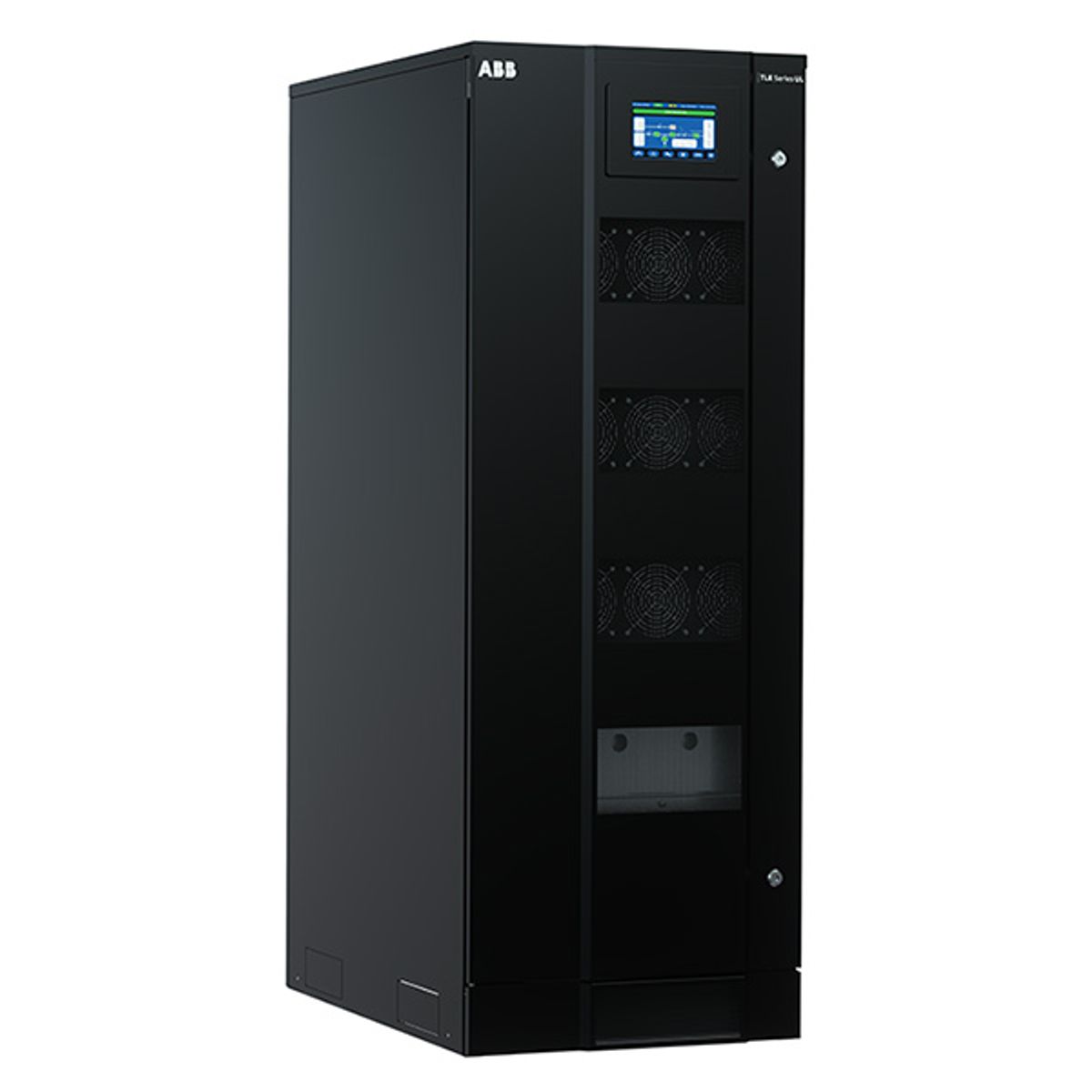

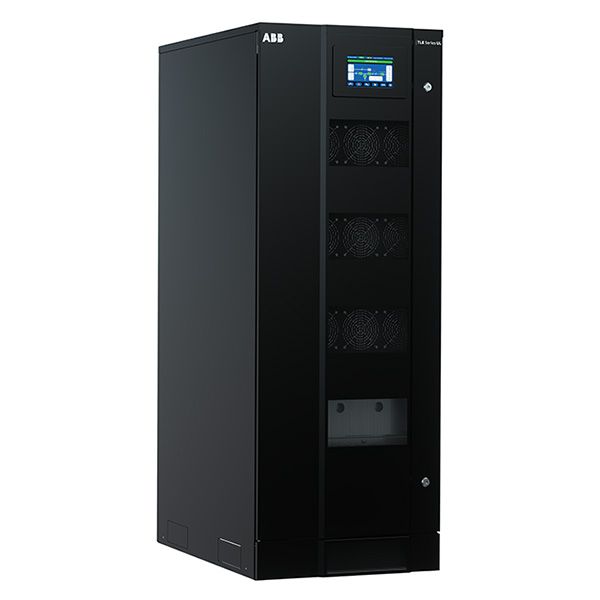

ABB - TLE Series Scalable UL UPS [40-150kVA]
One of the best-performing three-phase UPS systems providing critical power protection for various applications
The TLE Scalable series UPS provides industry-leading reliability, efficiency, clean input performance, and unity power factor at the output with the ability to scale from 40kW to 150kW vertically. Reliability & power can be further increased by paralleling up to 6 units utilizing Redundant Par... Read more
- Scalable 40kW to 150kW
- Capable of 6 units in RPA to 900kW
- Ventilation Front to Top
- Built in static bypass switch
One of the best-performing three-phase UPS systems providing critical power protection for various applications
The TLE Scalable series UPS provides industry-leading reliability, efficiency, clean input performance, and unity power factor at the output with the ability to scale from 40kW to 150kW vertically. Reliability & power can be further increased by paralleling up to 6 units utilizing Redundant Parallel Architecture (RPA) technology.
Through their complete life cycle, all ABB UPS systems are fully supported by service teams that provide world-class, 24x7 preventive and corrective services, training, and application expertise.
Features and benefits
- Scalable 40kW to 150kW
- Capable of 6 units in RPA to 900kW
- Ventilation Front to Top
- Built in static bypass switch
- Easy termination point at the front bottom
- Long Design life of 12 years plus
- Frequency Converter / Conditioner Mode (no batteries)
- Backfeed Protection
- Blackbox – Intelligent Diagnostics
- Matching Accessories: Battery Cabinets, MBP Cabinets, Output Distribution Cabinets
- SNMP Communications Card
- Eco Mode operation, yielding up to 98.9% efficiency
Applications
Easy to install and service, the TLE Series 40-150 Scalable UL UPS has front access optimized for easy access making it a modern solution for IT Server Rooms, Industrial Applications, Medical Facilities, and Process Driven Facilities.
